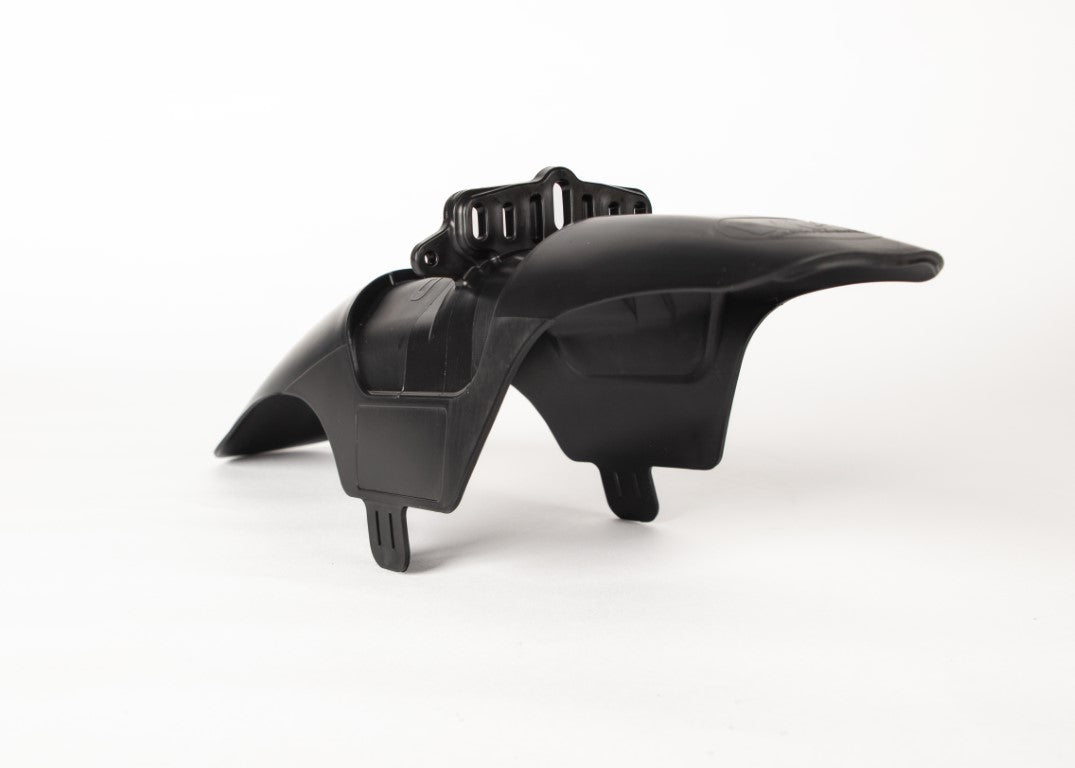

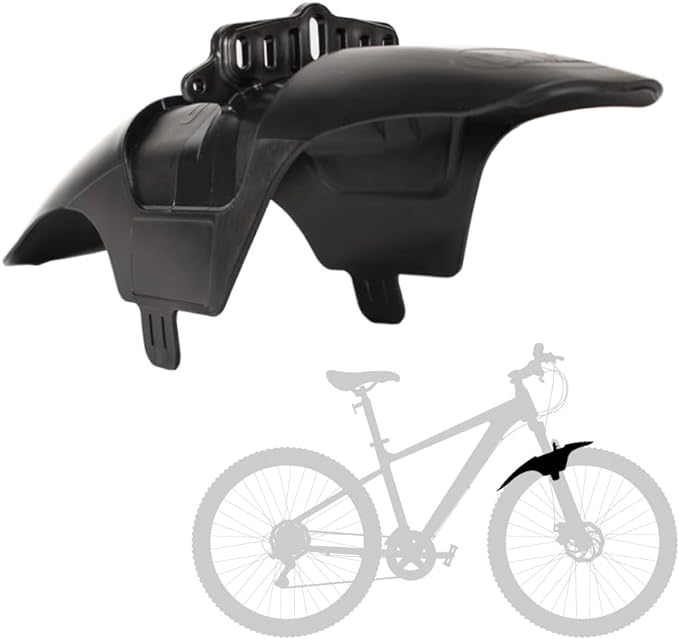

SHORTY EVO Bolt-On Mudhugger default FOX fitting (OPTIONS FOR ZEB, RECON, DVO AND OHLINS SEE BELOW)

BRAND NEW FOR SUMMER 2021

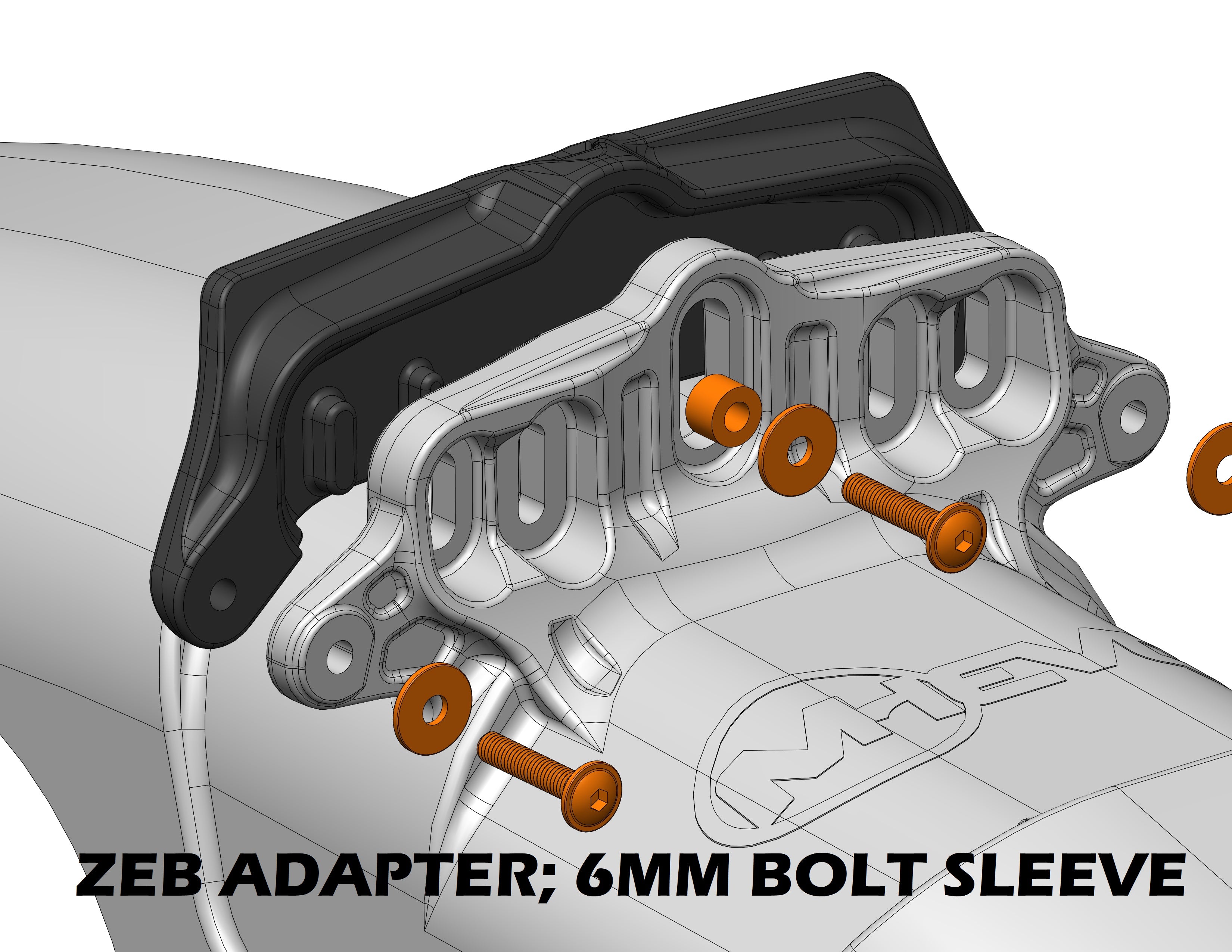

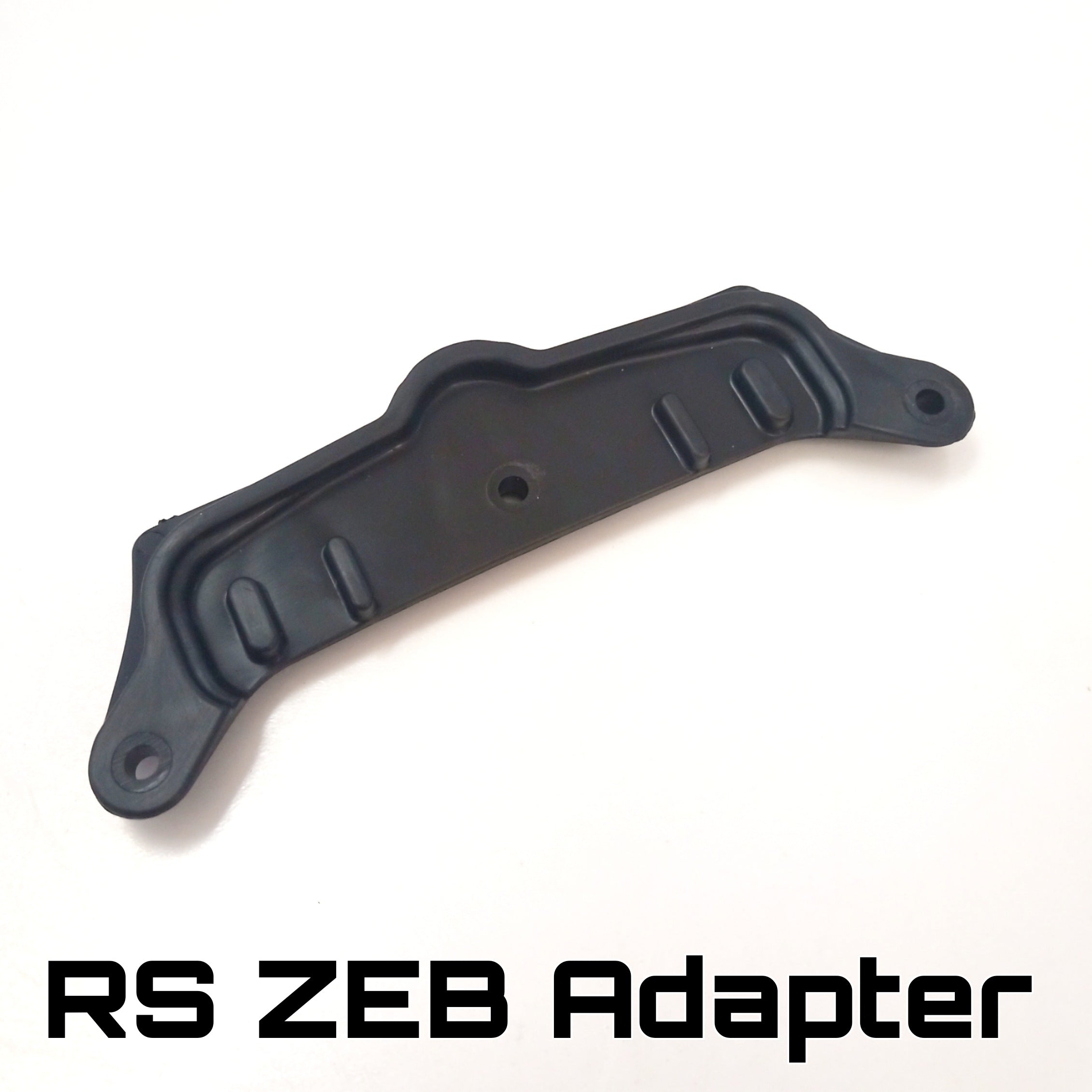

FOR FITTING TO RS ZEB ORDER THIS ADAPTER PACK TOO.

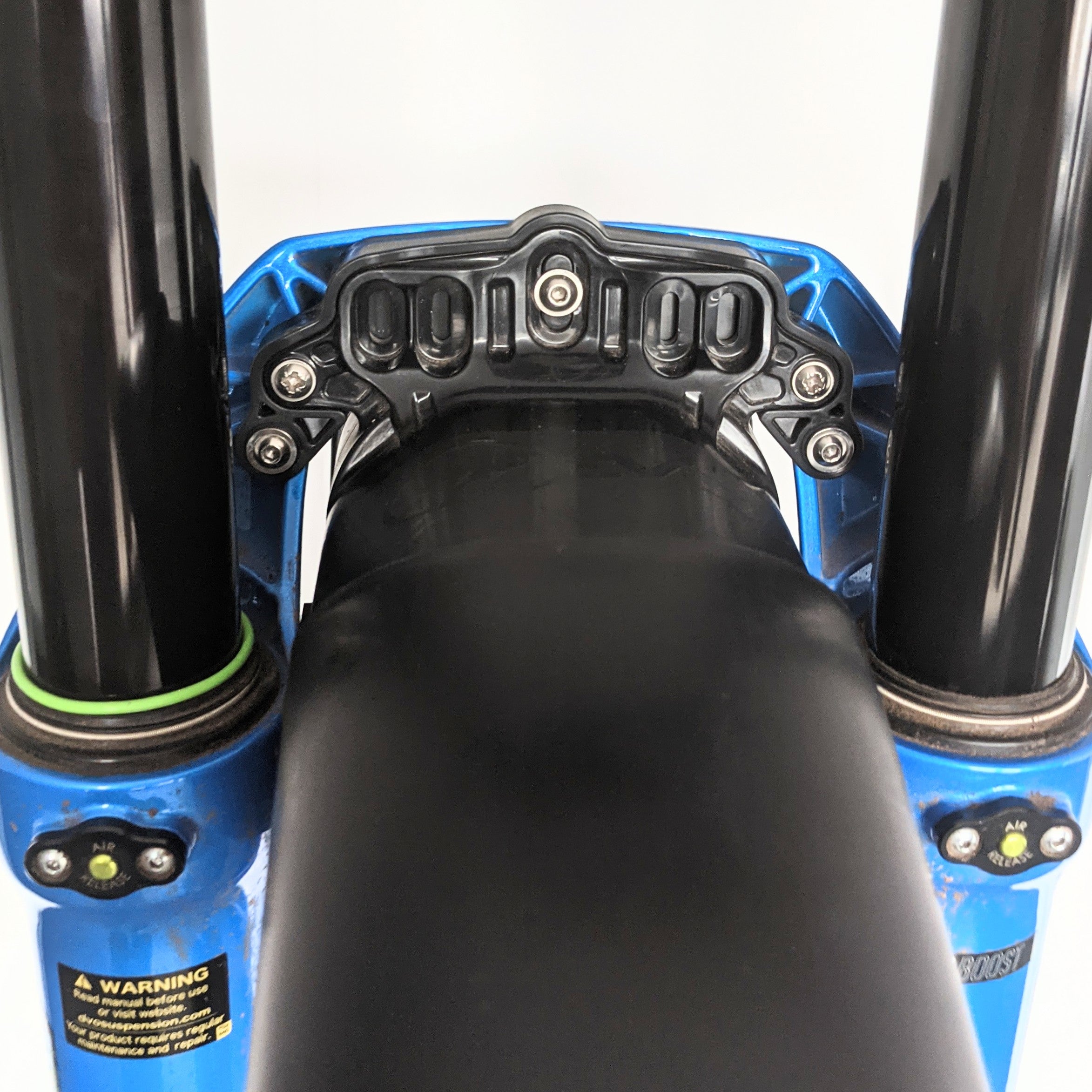

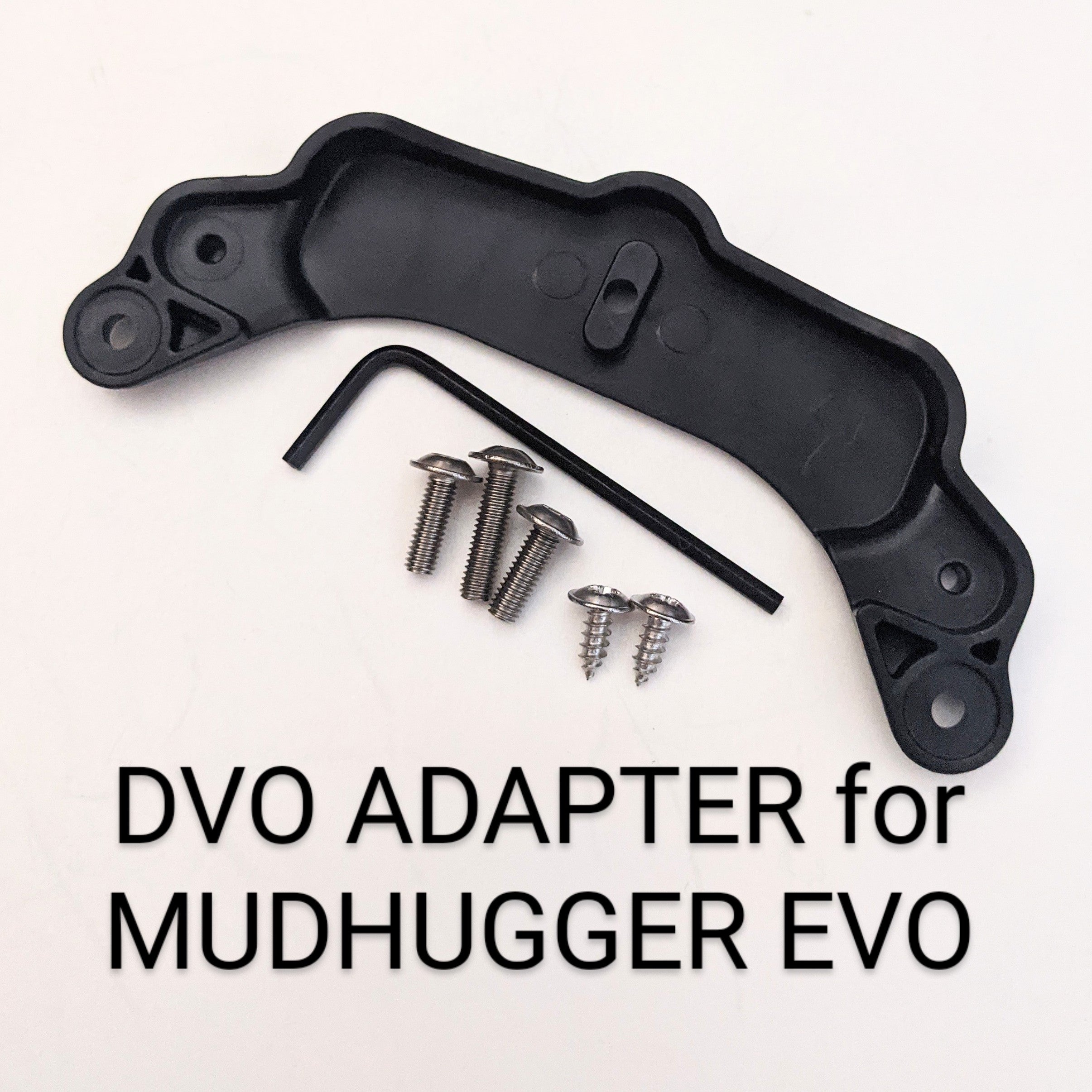

FOR FITTING TO DVO ORDER THIS ADAPTER KIT TOO.

FOR FITTING TO OHLINS ORDER THIS APAPTER PACK TOO.

FOR FITTING TO RECON GOLD & SILVER 35 ORDER THIS ADAPTER PACK TOO.

We’ve had the benefit of designing the new Mudhugger EVO around the latest FOX 36 and 38’s and Rockshox ZEB (not compatible with 38mm offset ZEB) to avoid the problem of the crown hitting the mudguard at full compression that other mudguards suffer from (adapter bracket required for ZEB, see options) but still compatible with older (2017) onwards FOX forks 34 and 36 (including Fox/Marzocchi) which have bolt holes. *not compatible with Marzocchi Bomber Z2.

MINIMUM FORK OFFSET - 44MM

Also compatible with Ohlins RXF and DH forks (adapter bracket required, see link above).

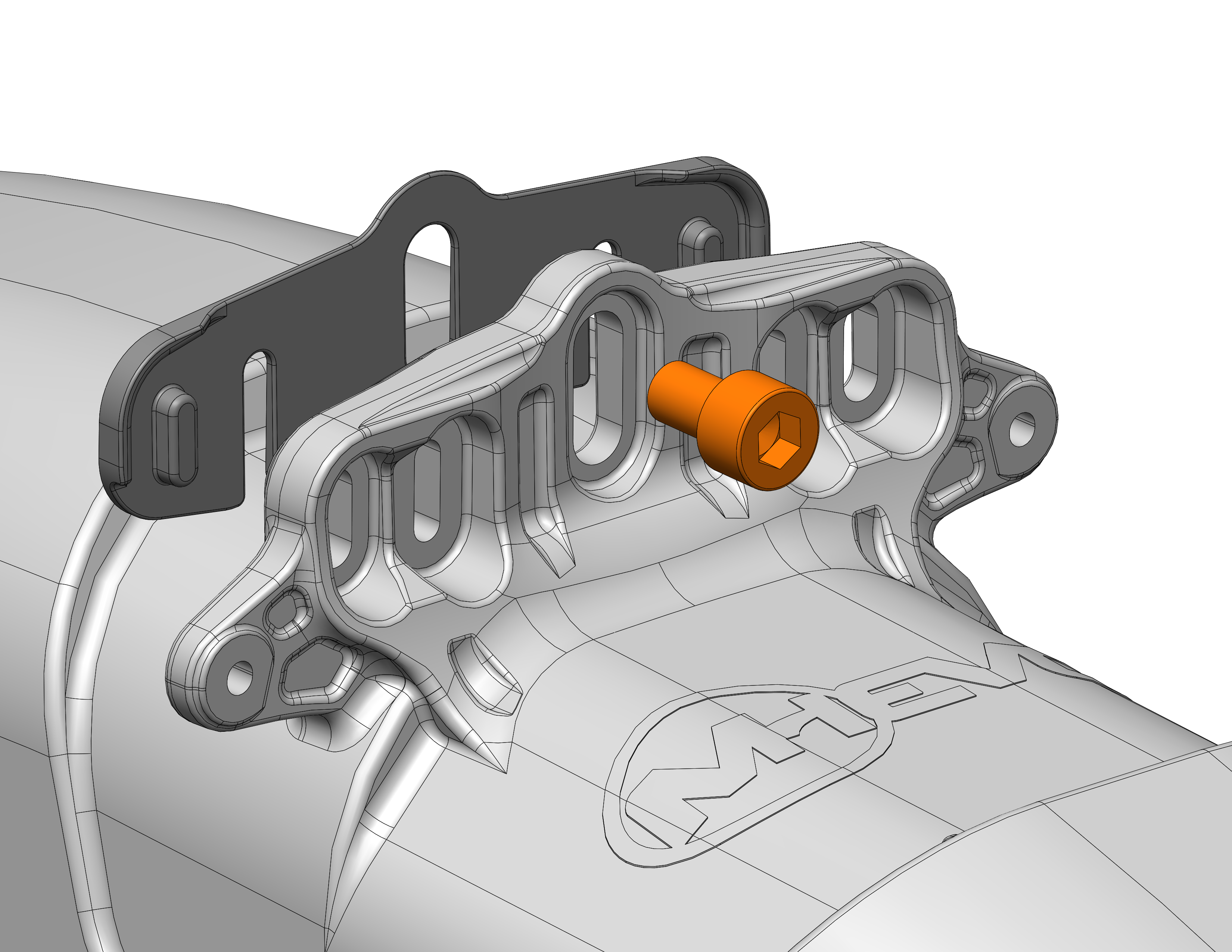

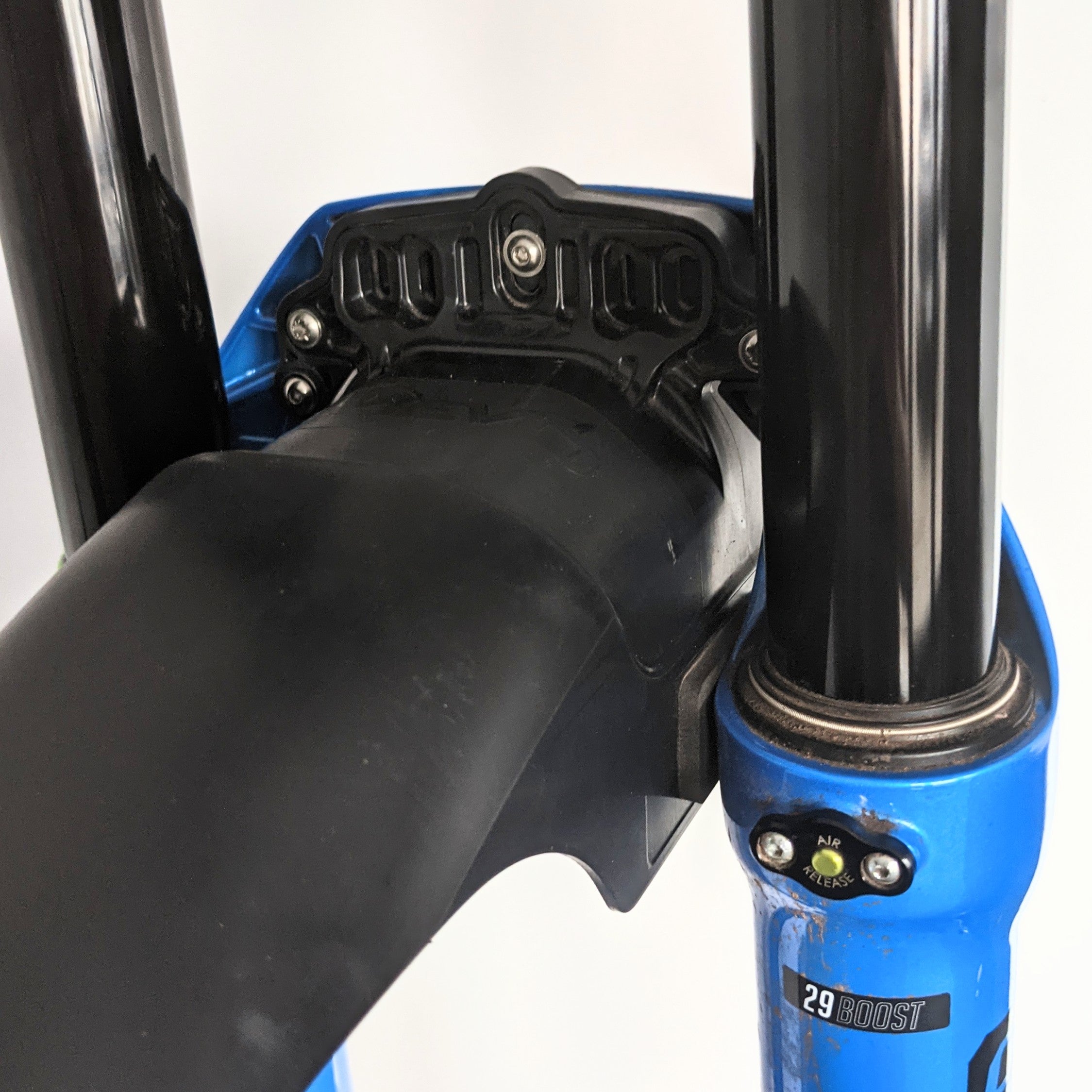

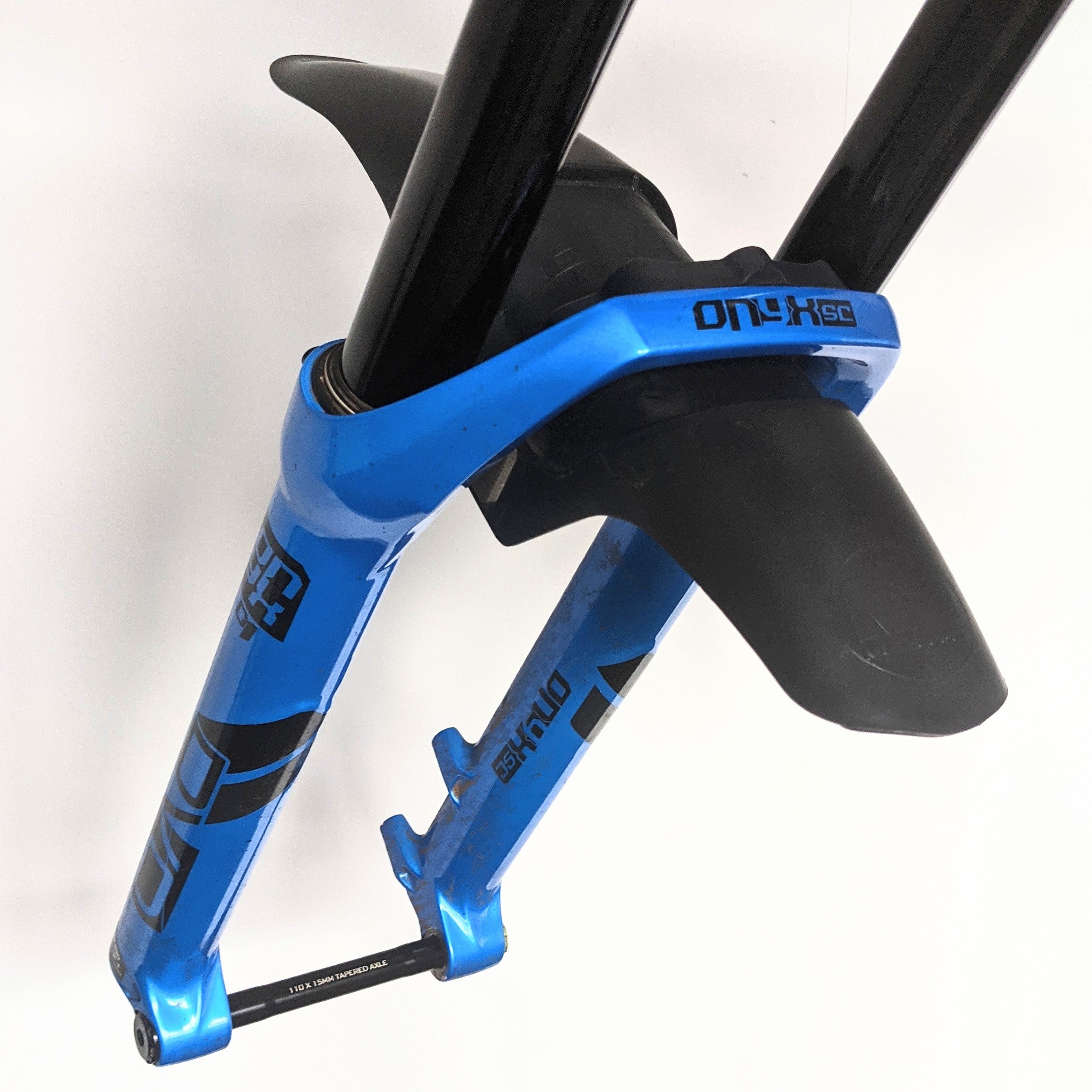

Compatible with RS RECON GOLD & SLIVER 35. Use the angle adjuster shim included in the default fitting kit along with the 6mm bolt (sold seperately) see link above.

PLEASE NOTE - For all Downhill forks see the option for DH. These are supplied with 2 extra wide high density foam bumpers, to be used instead of the 2mm rubber bumpers, to fill the width of the DH forklegs. You will still need to order the seperate adapter for Ohlins DH forks.

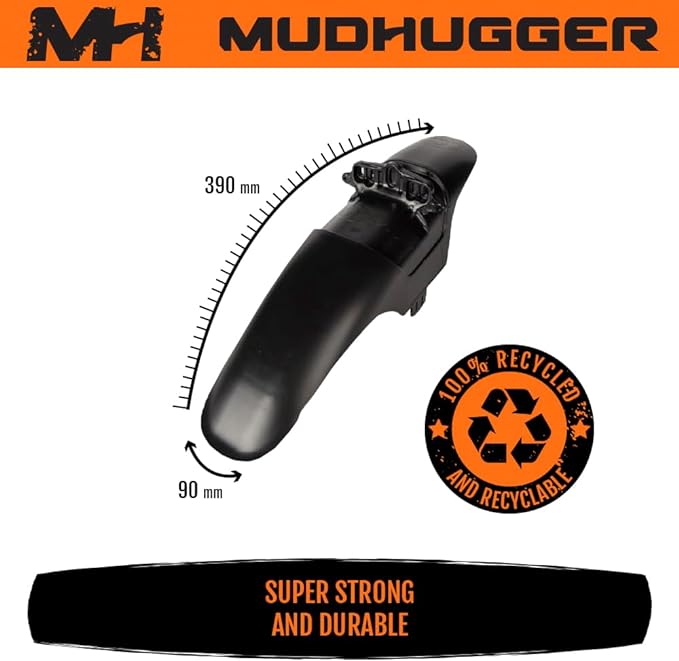

Length - 390mm total - Rear extension 255mm, front extension 105mm

Weight - 100g, without fittings.

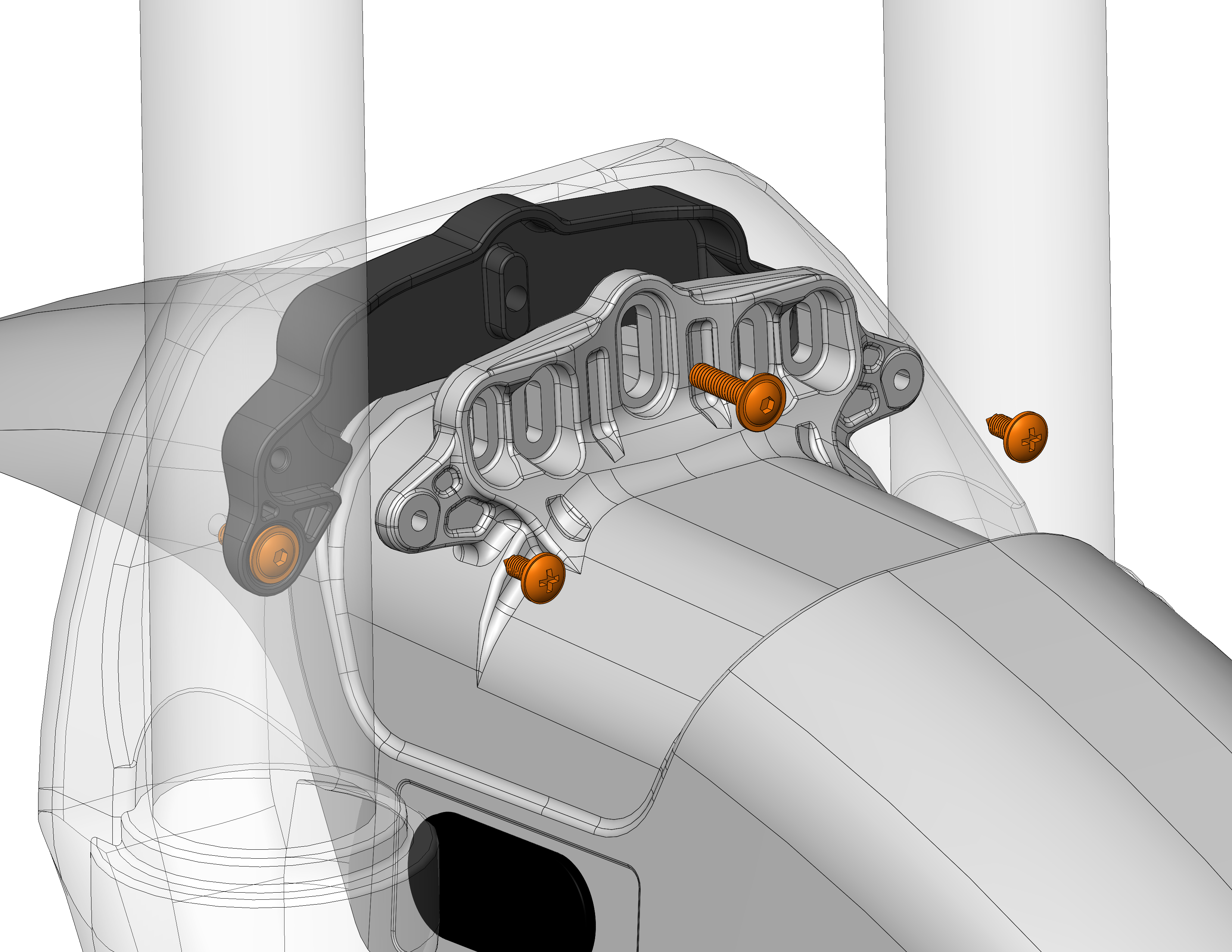

Bolts directly to the back of the fork brace. Default FOX kit supplied with rubber pads, bolts, washers and hex key to install to your FOX forks. For ZEB and Ohlins an ADAPTER PACK is required, sold seperatley (see above).

See below for our 'How to fit video'

• Shorty version of the LONG EVO
• More mud clearance.
• No more crown fouling at full compression.
• Stiffer.
• Subtle kicker to keep length as short as possible without compromising spray protection.

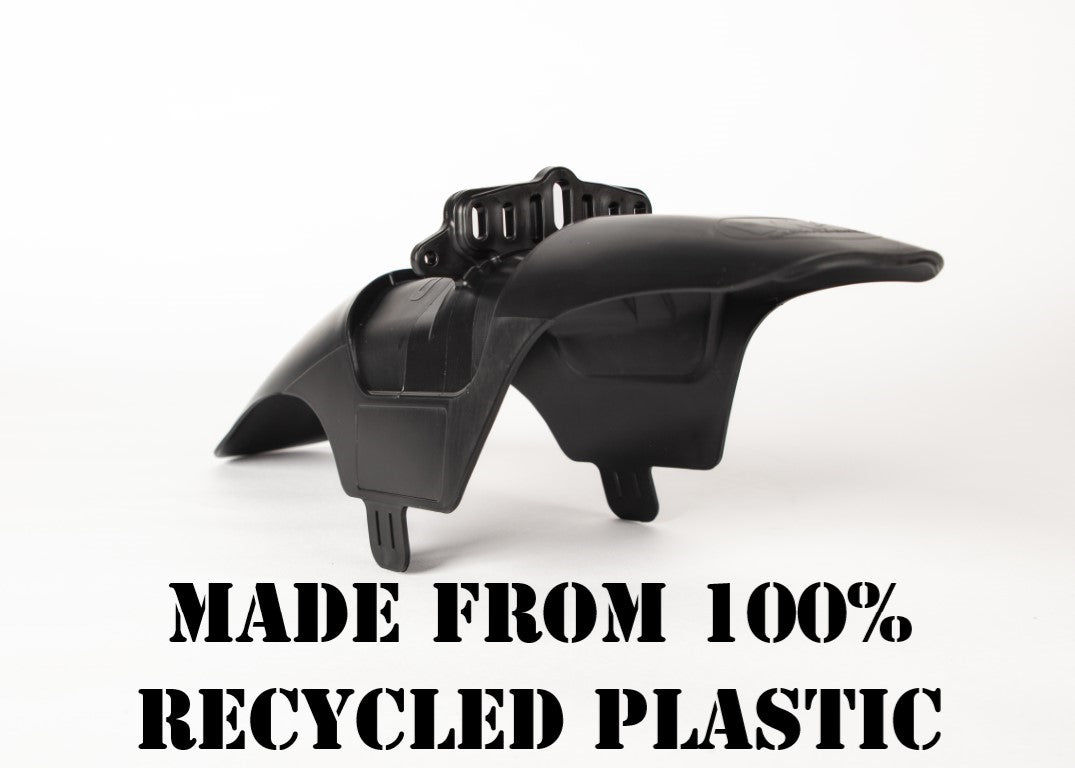

• 100% recycled PP.
• Designed, made and packed in the UK.
